DISCOVER SE4 CONSOLE
CONSOLE INNOVATIONS
Introducing the Life Fitness Discover SE4 Console—a state-of-the-art console that captures the attention of exercisers, provides a multitude of immersive workout experiences and gives fitness facilities the power to create custom-branded content.
Connectivity is at the heart of Discover SE4. Exercisers can seamlessly sync a smartphone, tablet or other device using Bluetooth or NFC technology.
Through Halo Facility, you can enable access to more than 500 Life Fitness On Demand+ fitness experiences and facilities can create custom-branded content that appears on the console.
24" AND 16" DISCOVER SE4 CONSOLE
IMMERSIVE LARGE SCREEN
A large, 1080p touch screen employs cutting-edge technology for an incredibly responsive user interface. The 24” screen (also available in 16”) is both intuitive and stylish and allows users to choose the cardio experience that’s right for them.
HALO FACILITY
GET THE MOST FROM YOUR CONSOLE
Motivational messaging, a variety of Life Fitness On Demand+ workouts, insights into machine usage and preventive maintenance reminders – all enabled via Halo Facility. We empower you and your staff with data, keep you connected to exercisers and make it easier for you to manage your facility in one platform.

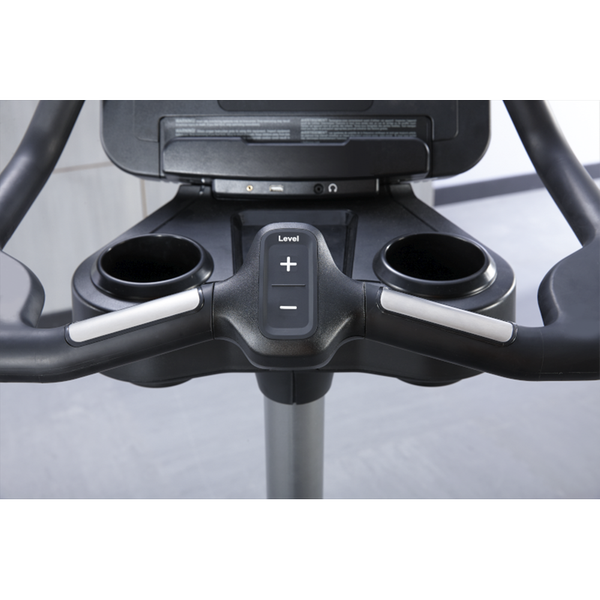

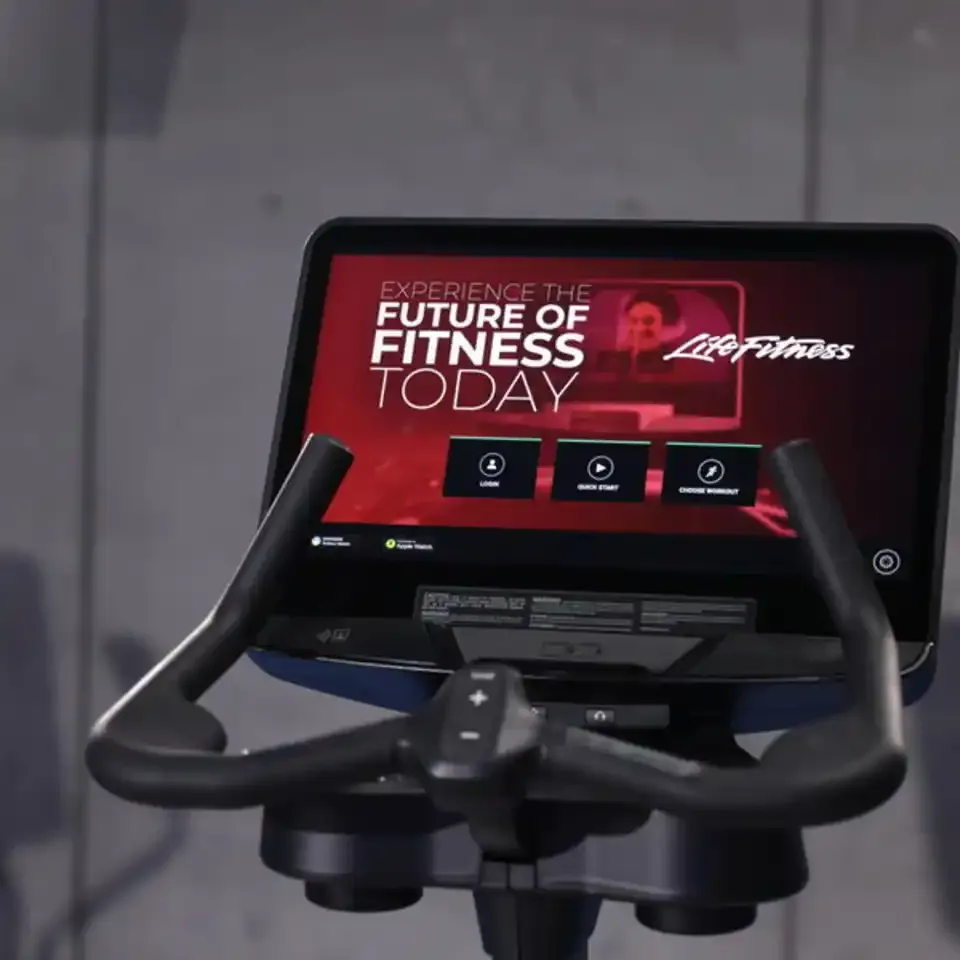

ERGONOMIC RACING HANDLEBARS
Handlebars are designed to offer cruising, hybrid and race positions. The deluxe base offers integrated resistance controls, to make in-workout changes easy, and elbow pads for added comfort.

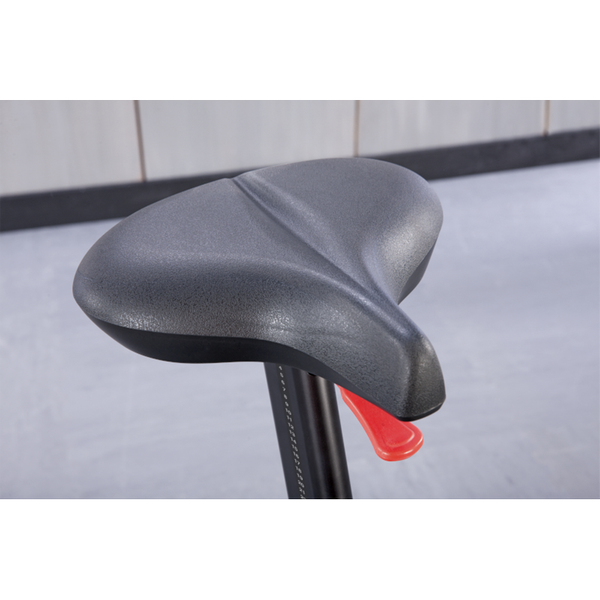

A COMFORTABLE RIDE

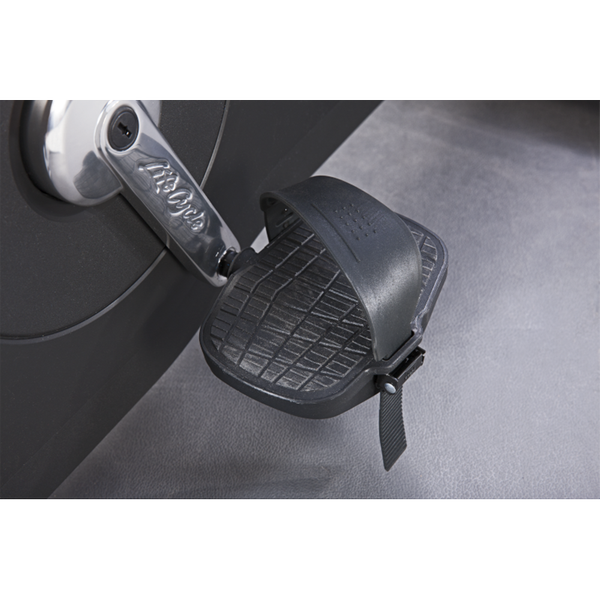

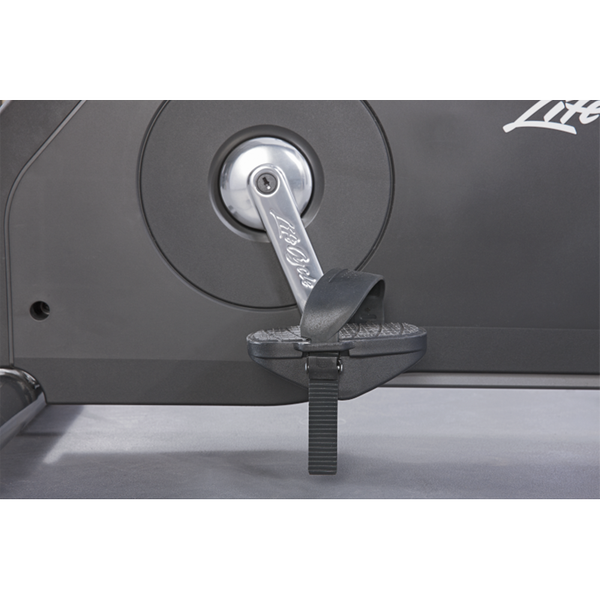

Easy adjustment for a fine-tuned and ergonomically sound seat position. Wide, self-leveling pedals with simple buckle straps allow exercisers to get on and go.
TECHNICAL SPECIFICATIONS

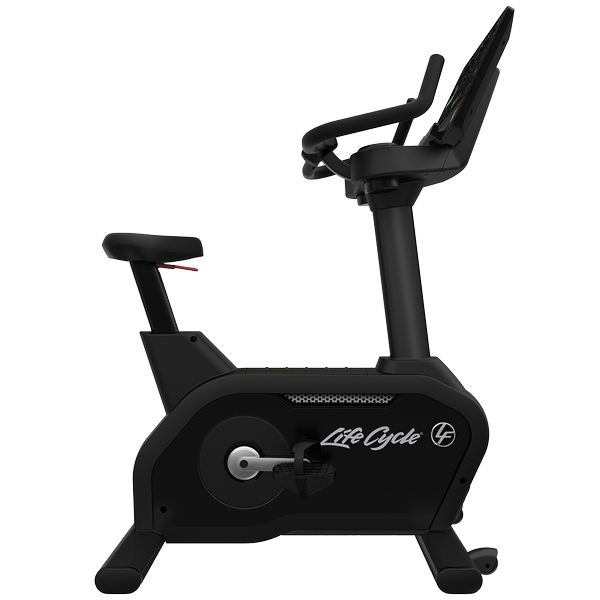

Description | Integrity+ Cardio Upright Bike
|
|---|---|
Console | Discover SE4 Console |
Handlebars | Deluxe Racing Handlebars, egonomic design w/elbow support
|
Remote Buttons | Yes |
Saddle | Improved Comfort Curve™ Seat |
Pedals | Self-Leveling Wide Ride™ Pedals |
Pedal size | 6.56″ x 5.5″ (16.7 cm x 14 cm) |
Pedal Straps | Yes |

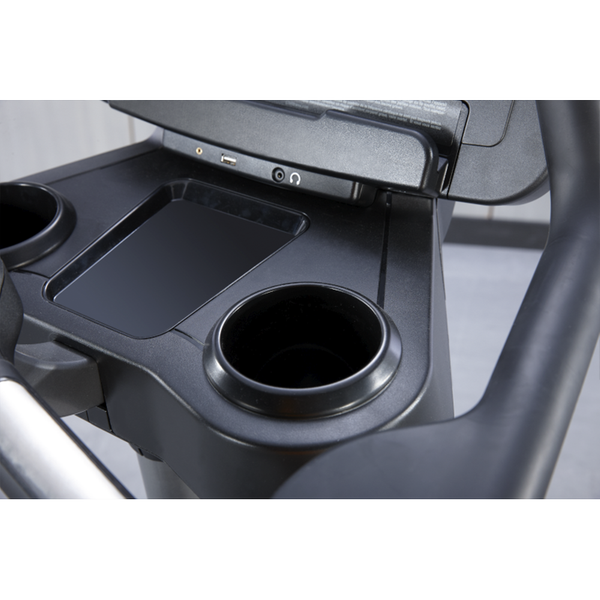

Accessories Holder | Integrated Accessory Tray |
Color | Arctic Silver, Titanium Storm, Black Onyx, Diamond White, Smooth Charcoal |
Seat Adjustment | 42 Fine-Tuned Seat Adjustments w/easy to reach height adjustment lever; Lowest: 18.25″” Highest: 31.5″” Delta: 13.25″” Adjustment 14″ |
Step-over height | 21.14″ (536.9mm) |
User Height Range | 4’9″ – 6’5″ |
Max User Weight | 400 lb (182 kg) |
Transport Wheels | Yes |
Drive System | Generator Drive System with 8-Ribbed Poly-V Belt resistance system |
Resistance Levels | 26* |
Resistance Type | Hybrid Eddy current brake with brushless internal generator for low drag and high power capability |
Belt Drive | Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance
|
Multi Ribbed Belt Drive | Yes
|
Generator | Generator |
Crank size | 165mm (6.5″)
|
Touch | Yes
|
Telemetry | Yes |
Self-powered | SL Console only
|
Power Requirements | Integrity D and S: North America: 120V, 20A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 100V, 20A; International: 230V, 10A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 200V, 10A; Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power – 24V, 2.5A (60W)
|
Minimum Watts | 29 Watts
|
Maximum Watts | 900 Watts
|
Minimum RPM | 30 rpm |
Assembled Dimensions | Length 41.5″ (105cm), Width 24.5″ (62cm), Height 54.5″ (138cm)
|
Assembled Weight | 169lbs (76.5kg)
|
Shipping Weight | 200lbs (91kg) |
Shipping Configurations (for non-installed purchases) (L x W x H) | 63″ x 27″ x 39″ (160.02 cm x 68.58 cm x 99.06 cm)
|
CONSOLES FOR EVERY EXERCISER
Consoles for every budget and exerciser’s needs.
Life Fitness

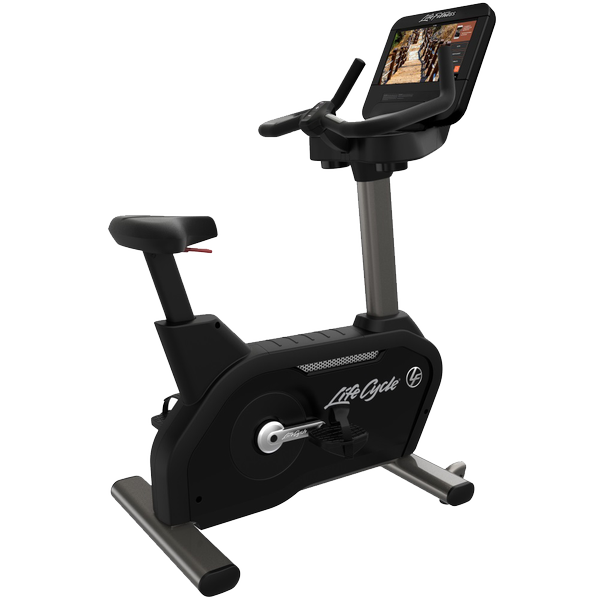

DISCOVER SE3 HD CONSOLE
- A growing librowing library of Life Fitness On Demand instructor-led workouts
- Apple Watch® and Samsung Galaxy Watch® compatibility
- Performance Run interval training (treadmills only)
- Beautiful Lifescape interactive courses
- Streaming apps and entertainment available
Life Fitness
DISCOVER ST CONSOLE
- Entertainment from integrated TV
- Beautiful interactive terrain courses
- Performance Run interval training (treadmills only)
- Features up to 25 workouts
Life Fitness

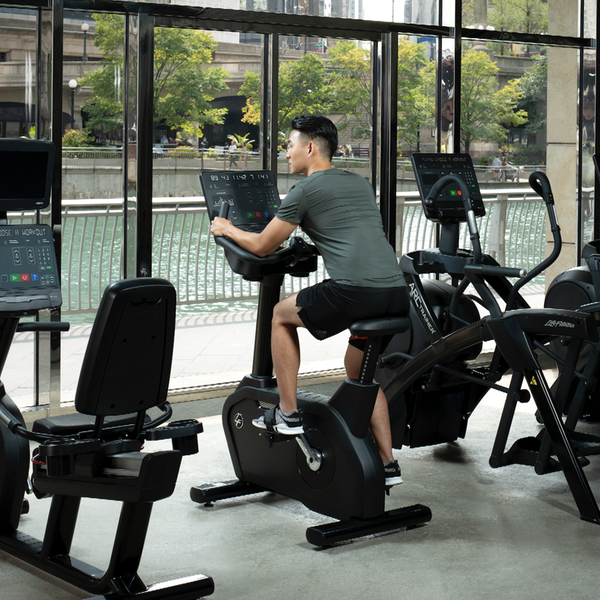

INTEGRITY SL CONSOLE
- Get on and go functionality
- Large LED display
- 17 to 22 workouts
- Bluetooth® connection to heart rate straps, headphones and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- Connects to Apple Watch®
WHICH SERIES IS RIGHT FOR YOU?
Upright bikes for every budget and exerciser’s needs.
Life Fitness
ELEVATION SERIESLIFECYCLE® UPRIGHT EXERCISE BIKE
- Premium cardio equipment with an inviting modern design
- Two console options that include feature-rich entertainment
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
INTEGRITY SERIESLIFECYCLE® UPRIGHT EXERCISE BIKE
- Modern aesthetics and added functionality with uncompromised durability
- Three console options from entertainment rich to a simple get-on-and-go LED
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
ACTIVATE SERIES LIFECYCLE® UPRIGHT EXERCISE BIKE
- Designed for both exercise rookie and workout regulars
- Intuitive LED console
- Product data via Halo.Fitness
