Life Fitness

Universal Cable

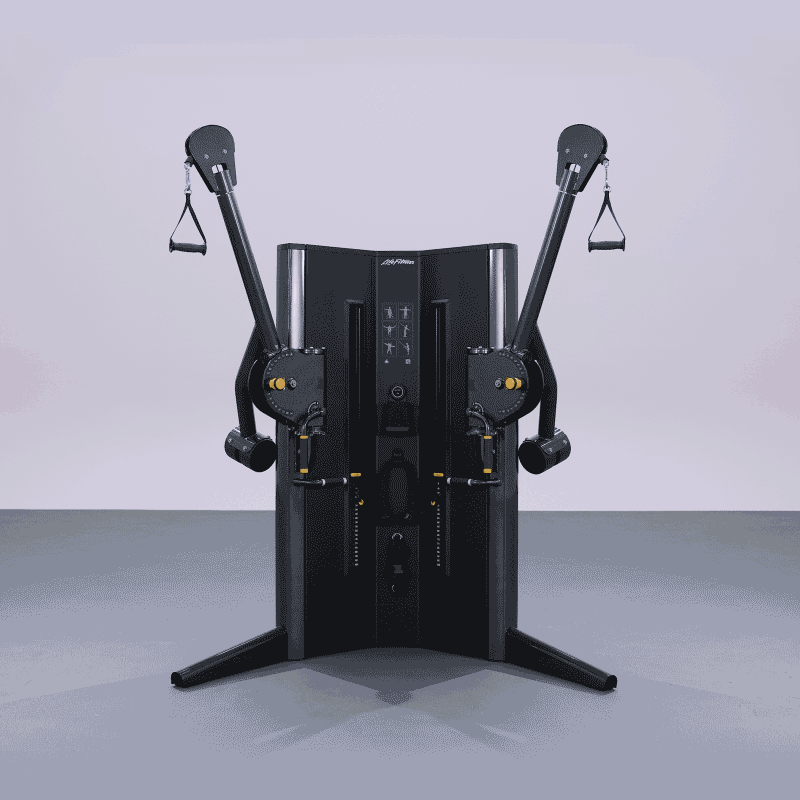

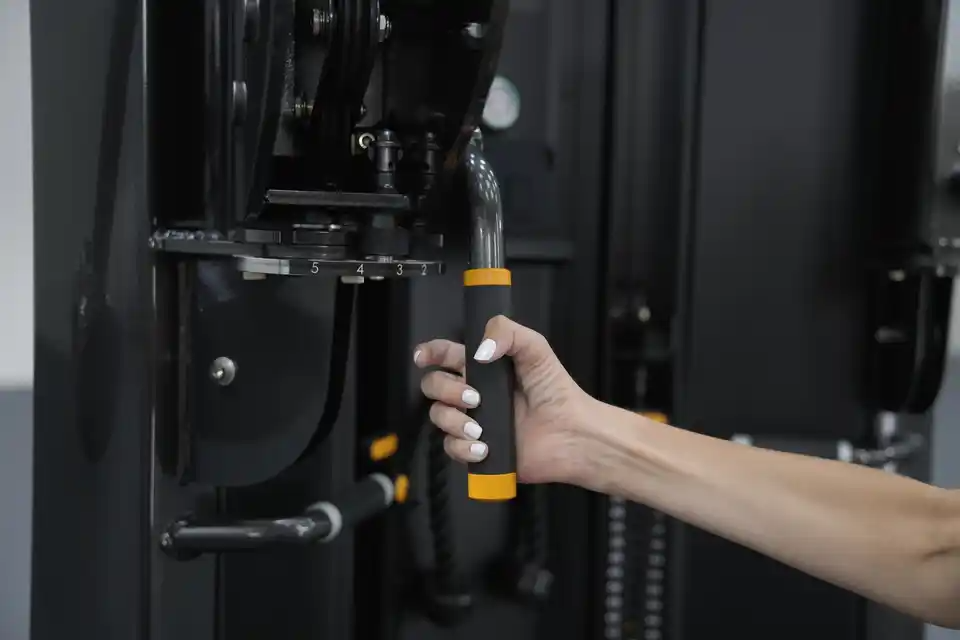

One-Handed Adjustments

Intuitively designed, perfectly counterbalanced vertical and horizontal arms allow easy, one-handed position changes to perform all cable exercises.

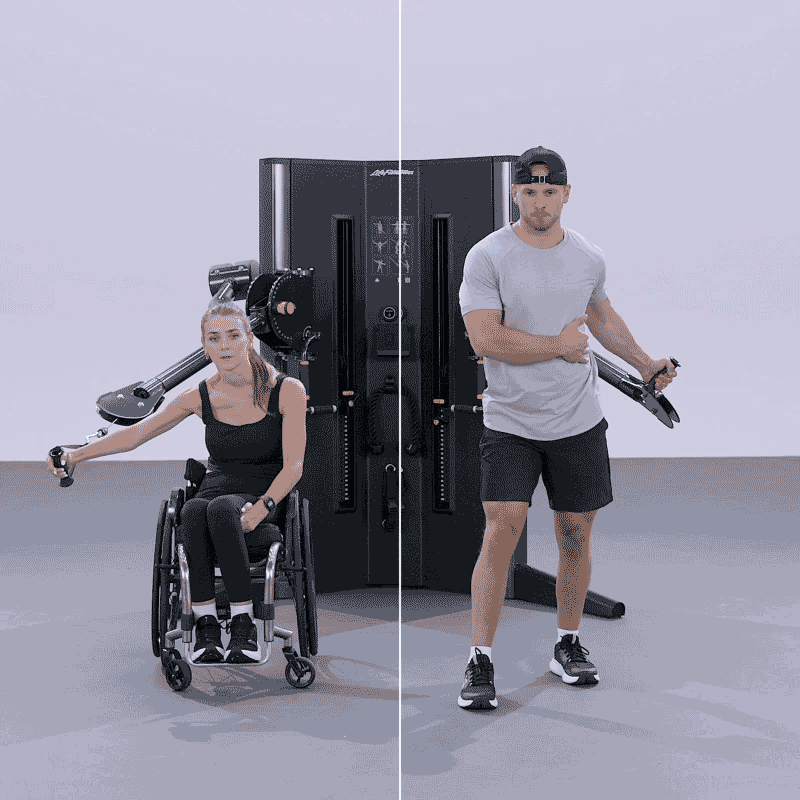

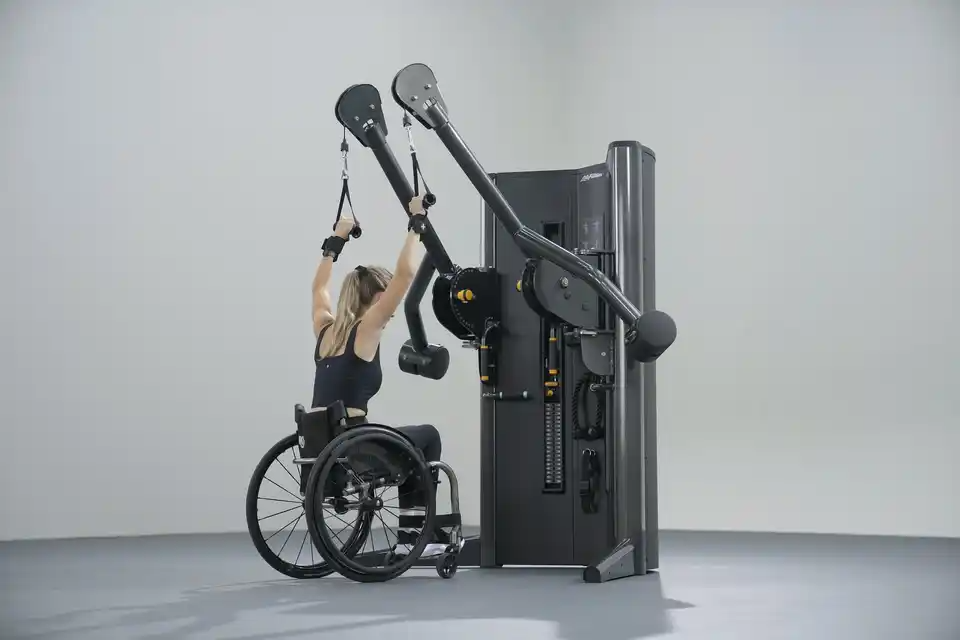

Inclusive Fitness

Whether in a wheelchair, single-limbed, or a traditional user, the Universal Cable meets the latest Inclusive ASTM standard –  providing an uncompromised exercise experience for all.

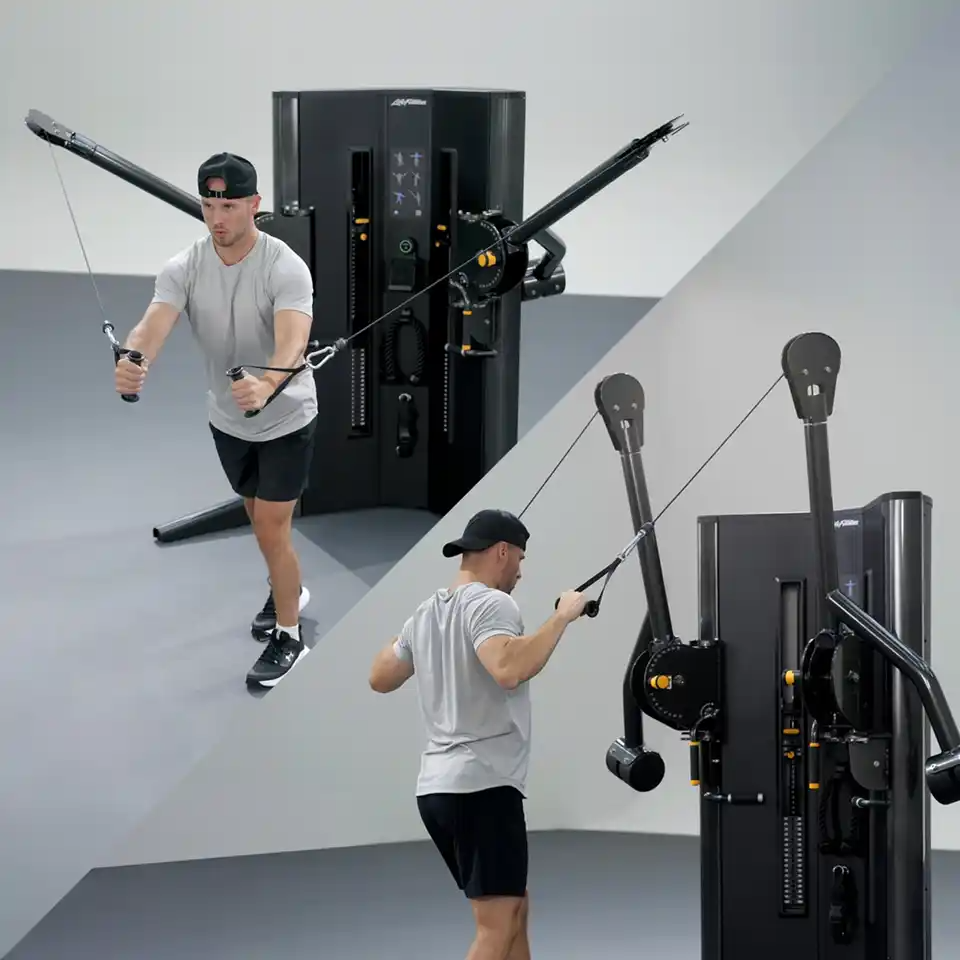

Improved Biomechanics

The wide range of arm adjustments enables strength training that mirrors the body’s natural movement patterns for more functional, effective results.

Specs Section
SPECS
Dimensions (L x W x H)
45” x 62” x 94.5” (114 x 158 x 240 cm)
Weight
1,300 lbs (590 kg)
Actual Stack Weight (per side)
402 lbs (182 kg)
Cable Ratio
3:1
User Effective Resistance (per side)
2.5 lbs – 100.5 lbs
Carriage Adjustments (per side)
22
Highest Adjustment Position (from floor)
78.5” (200 cm)
Lowest Adjustment Position (from floor)
6.5” (17 cm)
Cable Travel Length
144” (366 cm)

Customize your own Universal Cable

Customize your equipment like never before with our 3D configurator tool, featuring augmented reality to visualize and drop your design directly into your space.
