Life Fitness
LOWER BODY ARC TRAINER

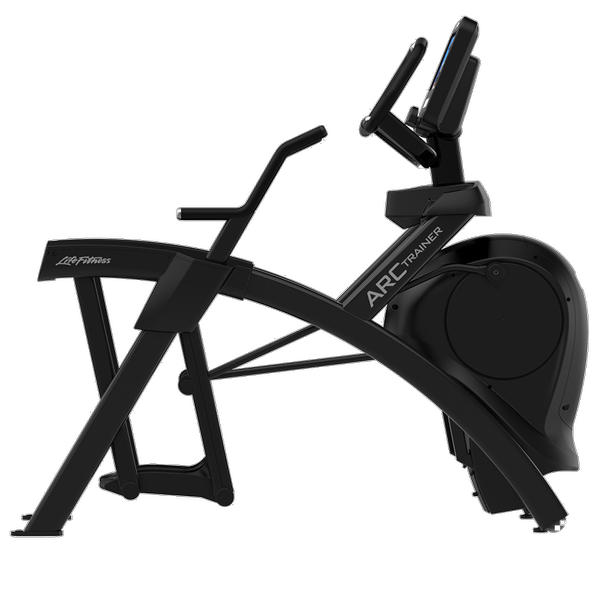

The Arc Trainer is a versatile alternative motion cross-trainer that appeals to a wide range of exercisers. The 21 incline levels allow users to choose the type of workout they prefer and the different muscle groups that they want to work. The Arc Trainer is truly a 3-in-1 cardio machine. The wide incline range gives exercisers the ability to glide (lower inclines), stride (medium inclines), or climb (higher inclines).
Users can also choose between long cardio workouts, short bursts during interval training, or workouts focused on building power and strength. Fitness facilities have several console options to choose from. They range from simple and intuitive, to entertainment rich and engaging.
CONSOLES FOR EVERY EXERCISER
Consoles for every budget and exerciser’s needs.
Life Fitness

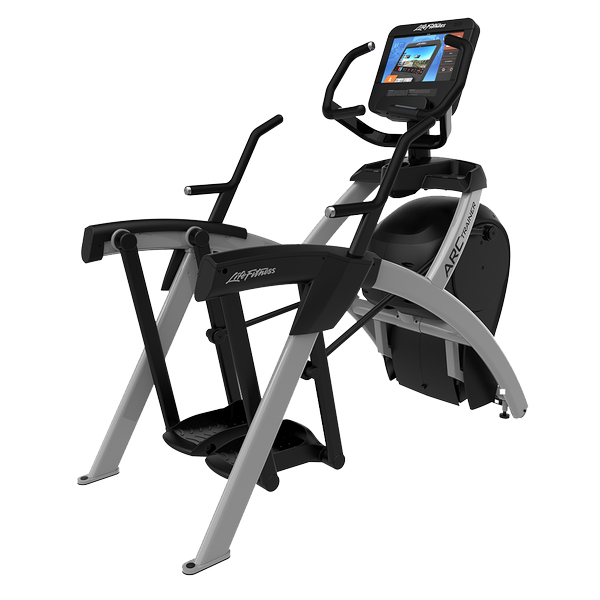

DISCOVER SE3 HD CONSOLE
- A growing librowing library of Life Fitness On Demand instructor-led workouts
- Apple Watch® and Samsung Galaxy Watch® compatibility
- Performance Run interval training (treadmills only)
- Beautiful Lifescape interactive courses
- Streaming apps and entertainment available
Life Fitness
DISCOVER ST CONSOLE
- Entertainment from integrated TV
- Beautiful interactive terrain courses
- Performance Run interval training (treadmills only)
- Features up to 25 workouts
Life Fitness

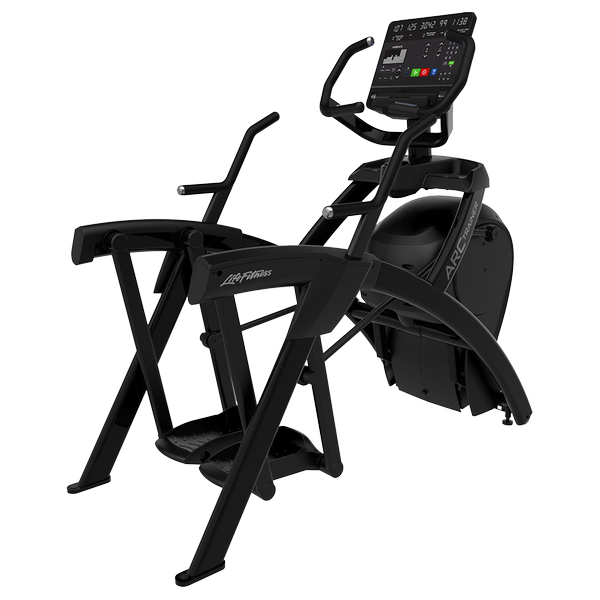

INTEGRITY SL CONSOLE
- Get on and go functionality
- Large LED display
- 17 to 22 workouts
- Bluetooth® connection to heart rate straps, headphones and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- Connects to Apple Watch®
TECHNICAL SPECIFICATIONS
Description | Life Fitness Lower Body Arc Trainer
|
|---|---|
Console | SL, ST, SE3HD |
Dimensions (L” x W” x H”) | 76.5″ x 33″ x 62.5″ (194 cm x 93 cm x 159 cm) |
Equipment Weight | 412 lbs (187 kg)
|
Pedal Dimensions (inches) | Oversized pedals
|
Minimum Space between Foot Pedals (inches) | 3″ |
Step-Up Height (inches) | 5.25″
|
Colors | Arctic Silver, Diamond White, Black Onyx, Titanium Storm
|
Max User Weight | 400 lb (181 kg)
|
Handlebars | Cruiser Grips and Halo Grips |
Stride Length (inches) | 24″ |
Ramp Angle | 21 levels
|
Resistance Levels | 100 levels |
Resistance System | Resistance Range: up to 1200 Watts; Drive Type: Two-stage drive; Brake: Brushless Eddy current brake with generator |
Transport Wheels | Yes |
USB Port | Yes |
Warranty | 1 year |
Water Bottle Holder/Accessory Tray | Split level display with magazine rack. Centrally located water bottle holder and dual utility trays.
|
Self-powered | Integrity SL Console only |
Power Requirements | Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power – 24V, 2.5A (60W) |
Heart Rate | Yes |
Touch | Yes
|
Telemetry | Yes |
Shipping Weight | 485 – 495 lbs (220 kg – 225 kg)
|
Shipping Configurations (for non-installed purchases) | 76.77″ x 27.2″ x 46″ (195 cm x 69 cm x 117 cm)
|
