Life Fitness

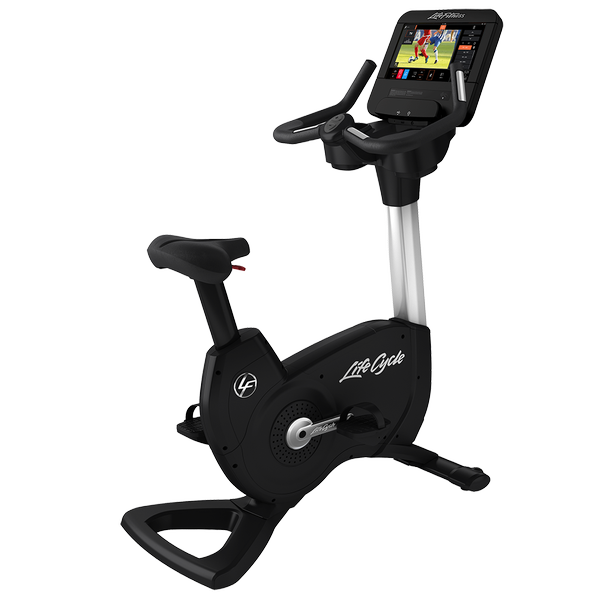

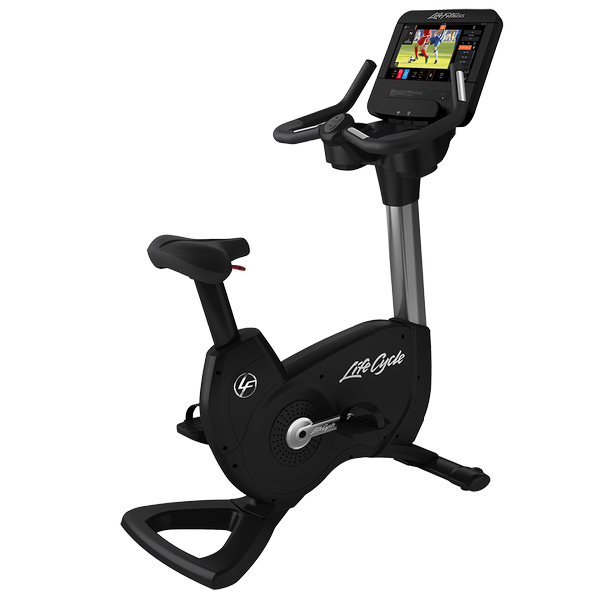

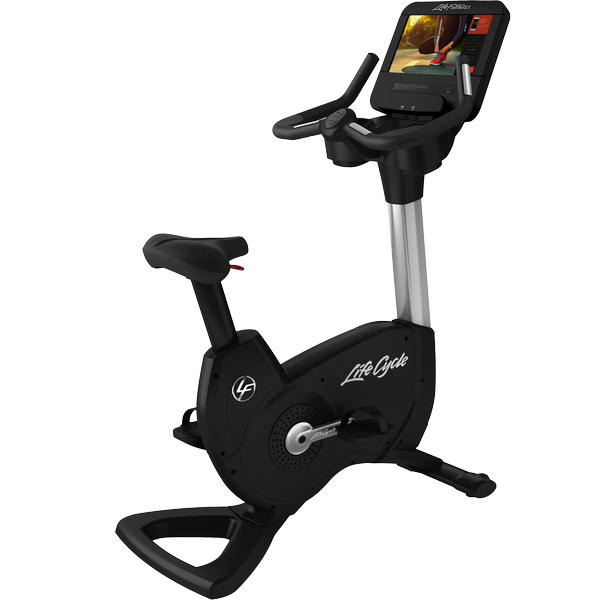

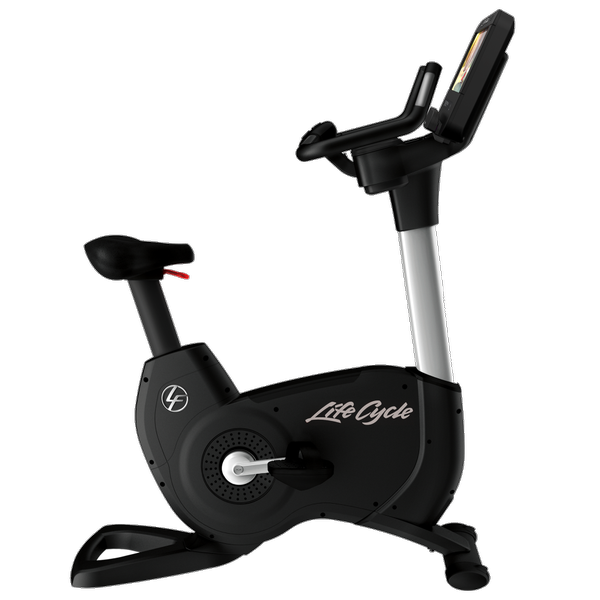

ELEVATION LIFECYCLE UPRIGHT EXERCISE BIKE
Premium cardio equipment that combines appealing design with entertainment-rich console options to keep exercisers engaged while riding. Users benefit from the comfort provided by an adjustable padded seat and Wide Ride pedals. Deluxe racing handlebars let exercisers choose positioning for relaxed rides or more intense pedaling.
The evolving technology of Elevation Series upright bikes allows exercisers to benefit from fitness apps and wearables and maintain the level of digital connection they’ve come to expect.
Wireless internet connection allows facilities to monitor valuable asset data and make easy software updates. Console choices and four color options let you create the cardio experience that best fits your exercisers.
TECHNICAL SPECIFICATIONS
Description | Elevation
|
|---|---|
Console | Discover ST, & SE3HD
|
Handlebars | XXL Seat Post and Handlebars (optional); Deluxe Racing Handlebars
|
Remote Buttons | Yes |
Saddle | XXL option
|
Interchangable Seat | No |
Pedals | Wide Ride™ Pedals
|
Pedal size | 6.56 x 5.5″
|
Pedal Straps | Yes |
Interchangable Pedals
| Yes |
Accessories Holder | Integrated Accessory Tray
|
Color | Artic Silver, Titanium Storm, Black Onyx, Diamond White
|
Seat Adjustment | Lowest: 17.75″” Highest: 30″” Delta: 12.25″” Adustment 13″”
|
Step-over height | 21.90″” (556.1mm) – highest part 18.82″” (478.1mm) – lowest point
|
User Height Range | 4’9″ – 6’5″
|
Max User Weight | 400 lb (182 kg)
|
Stretching Platform | No
|
Transport Wheels | Yes
|
Drive System | Generator/Belt
|
Resistance Levels | 26
|
Resistance Type | PM Generator/Brake
|
Belt Drive | –
|
Multi Ribbed Belt Drive | Yes
|
Generator | Generator
|
Crank | –
|
Crank size | 165mm (6.5″)
|
Touch | 2 locations
|
Telemetry | Polar® Telemetry (optional chest strap required); Lifepulse™ with DSP (Digital Signal Processing)
|
Self-powered | No
|
Power Requirements | AC Power line 115 volt, 15 amp (voltage may vary outside U.S.)
|
Minimum Watts | 25 Watts
|
Maximum Watts | 500 Watts
|
Minimum RPM | 30 rpm
|
Bearings | –
|
Assembled Dimensions | (LxWxH); 43in x 24in x 60in (109cm x 61cm x 152cm)
|
Assembled Weight | 175lbs (79kg)
|
Shipping Weight | 210 lbs (95kg)
|
Shipping Configurations (for non-installed purchases) (L x W x H) | 55.5 x 27 x 48.25″
|
Compliance | –
|
Warranty | 1 year |
CONSOLES FOR EVERY EXERCISER
Consoles for every budget and exerciser’s needs.
Life Fitness
DISCOVER SE3 HD CONSOLE
- Life Fitness On Demand+ featuring 500+ complimentary experiences
- Apple Watch® and Samsung Galaxy Watch® compatibility
- Performance Run interval training (treadmills only)
- Beautiful Lifescape interactive courses
- Streaming apps and entertainment available
WHICH SERIES IS RIGHT FOR YOU?
Upright bikes for every budget and exerciser’s needs.
Life Fitness
ELEVATION LIFECYCLE UPRIGHT EXERCISE BIKE
- Premium cardio equipment with an inviting modern design
- Two console options that include feature-rich entertainment
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
INTEGRITY+ LIFECYCLE UPRIGHT BIKE
- Sleek cardio equipment with the Discover SE4 Console, the pinnacle of console technology
- Eye-catching design aesthetics and added functionality with uncompromised durability
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
ASPIRE LIFECYCLE UPRIGHT EXERCISE BIKE
- A modern, streamlined design that provides trusted reliability and outstanding operational efficiency
- Includes the simple SL console, which allows any exerciser to get into a workout quickly and easily
- Seamless software updates and detailed product data via Halo.Fitness
