Life Fitness

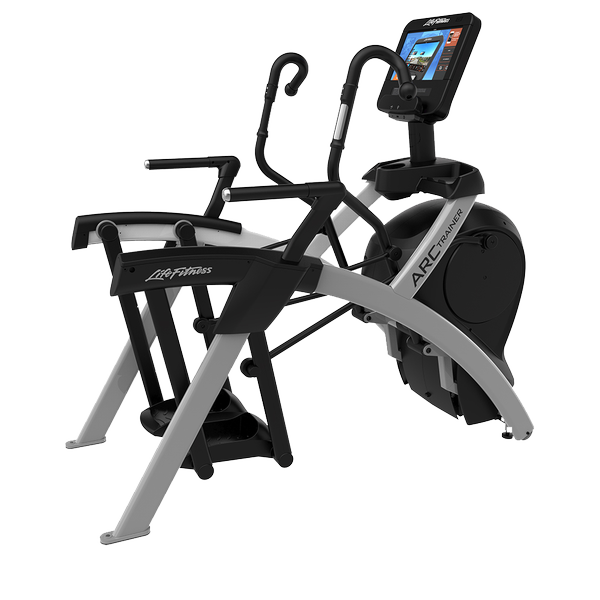

TOTAL BODY ARC TRAINER
The Arc Trainer is a versatile alternative motion cross-trainer that appeals to a wide range of exercisers. Moving arms with multigrip handles provide a total-body workout that exerts less stress on the knees than walking. The 21 incline levels allow users to choose the type of workout they prefer and the different muscle groups that they want to work. The Arc Trainer is truly a 3-in-1 cardio machine. The wide incline range gives exercisers the ability to glide (lower inclines), stride (medium inclines), or climb (higher inclines). Users can also choose between long cardio workouts, short bursts during interval training, or workouts focused on building power and strength. Fitness facilities have several console options to choose from. They range from simple and intuitive, to entertainment rich and engaging.
TECHNICAL SPECIFICATIONS
Description | Life Fitness Total Body Arc Trainer
|
---|---|
Console | SL, ST, SE3 HD
|
Dimensions (L” x W” x H”) | 76.5″ x 36.25″ x 62.5″ (194 cm x 93 cm x 159 cm)
|
Equipment Weight | 412 lbs (187 kg)
|
Minimum Space between Foot Pedals (inches) | 3″
|
Step-Up Height (inches) | 5.25″
|
Max User Weight | 400 lb (181 kg)
|
Colors | Arctic Silver, Diamond White, Black Onyx, Titanium Storm
|
Handlebars | Moving handles w/multi-grip and remote resistance controls, cruiser grips
|
Stride Length (inches) | 24″
|
Ramp Angle | 21 levels
|
Resistance Levels | 100 levels
|
Resistance System | Resistance Range: up to 1200 Watts; Drive Type: Two-stage drive; Brake: Brushless Eddy current brake with generator
|
Transport Wheels | Yes
|
USB Port | Yes |
Warranty | 1 year
|
Water Bottle Holder/Accessory Tray | Split level display with magazine rack. Centrally located water bottle holder and dual utility trays.
|
Self-powered | Integrity SL Consoles only
|
Power Requirements | Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power – 24V, 2.5A (60W)
|
Maximum Watts | up to 1200
|
Heart Rate | Yes |
Touch | Yes |
Telemetry | Yes
|
Shipping Weight | 485 – 510 lbs (220 kg – 231 kg)
|
CONSOLES FOR EVERY EXERCISER

Life Fitness
DISCOVER SE3 HD CONSOLE
- A growing librowing library of Life Fitness On Demand instructor-led workouts
- Apple Watch® and Samsung Galaxy Watch® compatibility
- Performance Run interval training (treadmills only)
- Beautiful Lifescape interactive courses
- Streaming apps and entertainment available

Life Fitness
DISCOVER ST CONSOLE
- Entertainment from integrated TV
- Beautiful interactive terrain courses
- Performance Run interval training (treadmills only)
- Features up to 25 workouts

Life Fitness

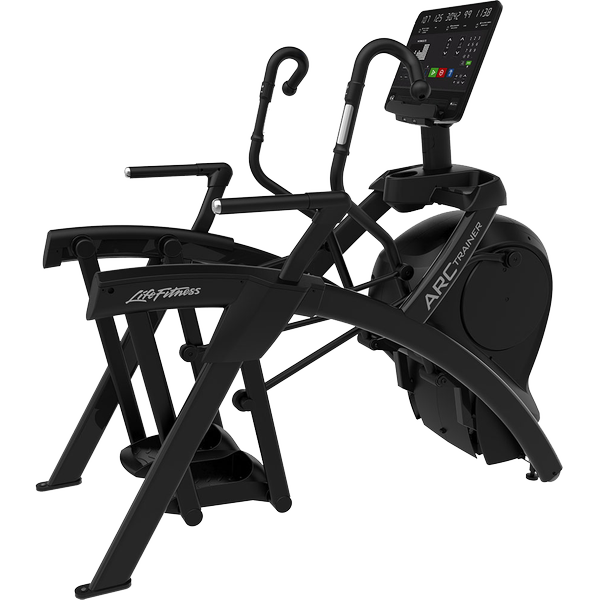

INTEGRITY SL CONSOLE
- Get on and go functionality
- Large LED display
- 17 to 22 workouts
- Bluetooth® connection to heart rate straps, headphones and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- Connects to Apple Watch®
