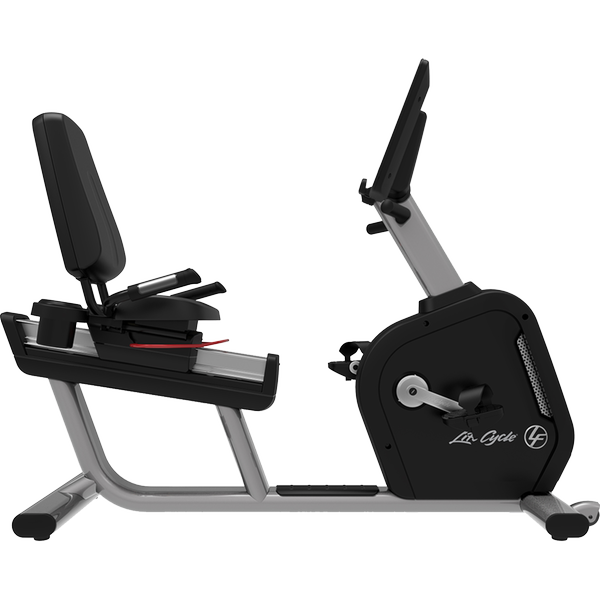

INTEGRITY SERIES LIFECYCLE RECUMBENT EXERCISE BIKE
Multiple recumbent bike combinations offer comfortable and inviting experiences for any exerciser. The Integrity Series benefits from a sleek and modern design, and is rooted in more than 20 years of reliability and innovation. Each bike offers wireless internet connection, which provides valuable asset management data and insights about your exercisers.
A COMFORTABLE RIDE

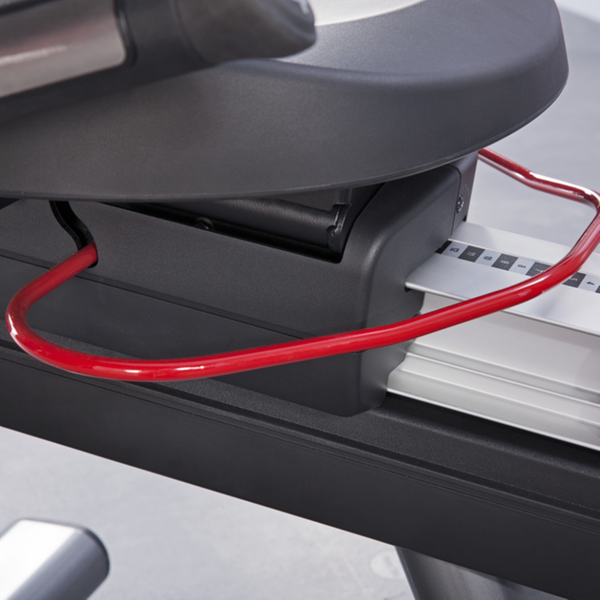

Seat includes a back rest and lumbar support, as well as a wrap-around adjustment lever that makes it easy to find the most comfortable seat position.
GET-ON-AND-GO ACCESSIBILITY
Step-through design for easy entry and exit. Wide pedals with simple buckle straps allow exercisers to get started quickly.
GENERATOR DRIVE SYSTEM
Drive system with 8-ribbed poly-V belt resistance provides a smooth, quiet operation and requires limited maintenance.
CONSOLES FOR EVERY EXERCISER

Life Fitness
DISCOVER SE3 HD CONSOLE
- A growing librowing library of Life Fitness On Demand instructor-led workouts
- Apple Watch® and Samsung Galaxy Watch® compatibility
- Performance Run interval training (treadmills only)
- Beautiful Lifescape interactive courses
- Streaming apps and entertainment available

Life Fitness
DISCOVER ST CONSOLE
- Entertainment from integrated TV
- Beautiful interactive terrain courses
- Performance Run interval training (treadmills only)
- Features up to 25 workouts

Life Fitness
INTEGRITY SL CONSOLE
- Get on and go functionality
- Large LED display
- 17 to 22 workouts
- Bluetooth® connection to heart rate straps, headphones and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- Connects to Apple Watch®
TECHNICAL SPECIFICATIONS
Description | Integrity D: Deluxe; Integrity S: Simple
|
---|---|
Console | Integrity S: C, X, ST, SE3HD; Integrity D: X, ST, SE3HD
|
Handlebars | Integrity D: Seat Side / Front ergo bar; Integrity S: Seat Side
|
Remote Resistance Controls | Integrity D: Yes; Integrity S: No
|
Seat | Integrity D: 20″ seat back with groves in the seat; Imporved Comfort Curve Plus™ Seat w/Lumbar Support and wrap-around seat adjustment lever; Integrity S: 15.5″ seat back; Seat w/Lumbar Support and wrap-around seat adjustment lever
|
Step-through design | Integrity D and S: Yes
|
Pedals | Integrity D: Self-Leveling Wide Ride™ Pedals; Integrity S: Wide Ride™
|
Pedal Straps | Integrity D and S: Yes
|
Interchangable Pedals | Integrity D and S: Yes
|
Accessories Holder | Integrity D: 2 bottle holders; Integrated Accessory Tray; Integrity S: 1 bottle holder; Integrated Accessory Tray
|
Color | Integrity D: Titanium Storm, Arctic Silver, Diamond White and Black Onyx; Integrity S: Arctic Silver, Black Onyx
|
Seat Adjustment | Integrity D and S: 41 Fine-Tuned Seat Adjustments w/wrap-around seat adjustment lever
|
Max User Weight | Integrity D and S: 400lbs (181kg)
|
Transport Wheels | Integrity D and S: Yes
|
Drive System | Integrity D and S: Generator Drive System with 8-Ribbed Poly-V Belt resistance system
|
Resistance Levels | Integrity D and S: 25
|
Belt Drive | Integrity D and S: Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance
|
Generator – Resistance System | Integrity D and S: Generator
|
Location | Integrity D and S: Side Handrails
|
Touch | Integrity D and S: Yes
|
Telemetry | Integrity D and S: Yes
|
Self-powered | Integrity D and S: Yes, SL console only; No for ST and SE3 HD consoles
|
Power Requirements | Integrity D and S: North America: 120V, 20A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 100V, 20A; International: 230V, 10A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 200V, 10A; Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power – 24V, 2.5A (60W)
|
Assembled Dimensions | Integrity D and S: 67″ x 26″ x 51.5″ (179 x 66x 131cm)
|
Assembled Weight | Integrity D: 215 lbs (97 kg); Integrity S: 211 lbs (96 kg)
|
Frame Warranty | Integrity D and S: 2 years
|
Parts Warranty | Integrity D and S: 2 years
|
Bearings and Electronic Warranty | Integrity D and S: 2 years
|
Labor Warranty | Integrity D and S: 1 Year
|
Miscellaneous Warranty | Integrity D and S: Surface treatments and expendable items 6 months
|
