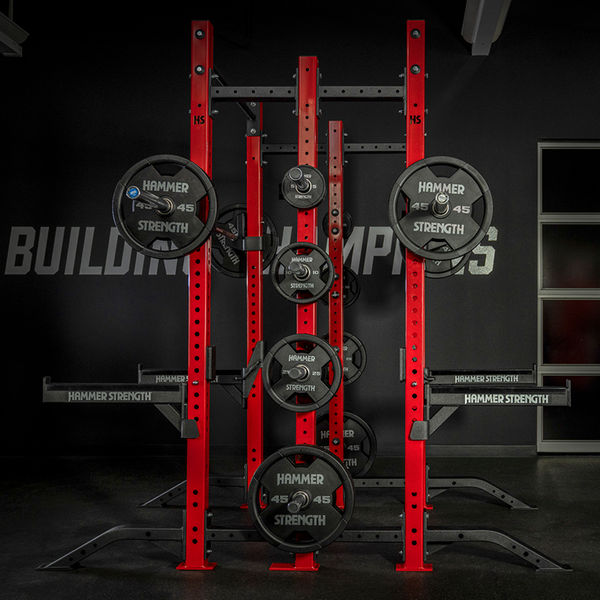

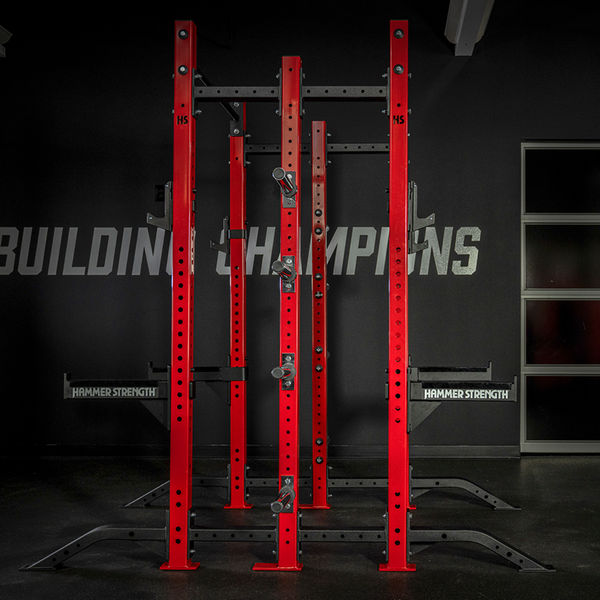

HD ATHLETIC NX HALF HALF COMBO RACK

The most space efficient Combo Rack that Hammer Strength builds provides a wide range of performance training options when space is at premium. The NX Half Half Combo Rack can be as shallow as 39″ (99 cm) or as large as 119″ (302 cm).

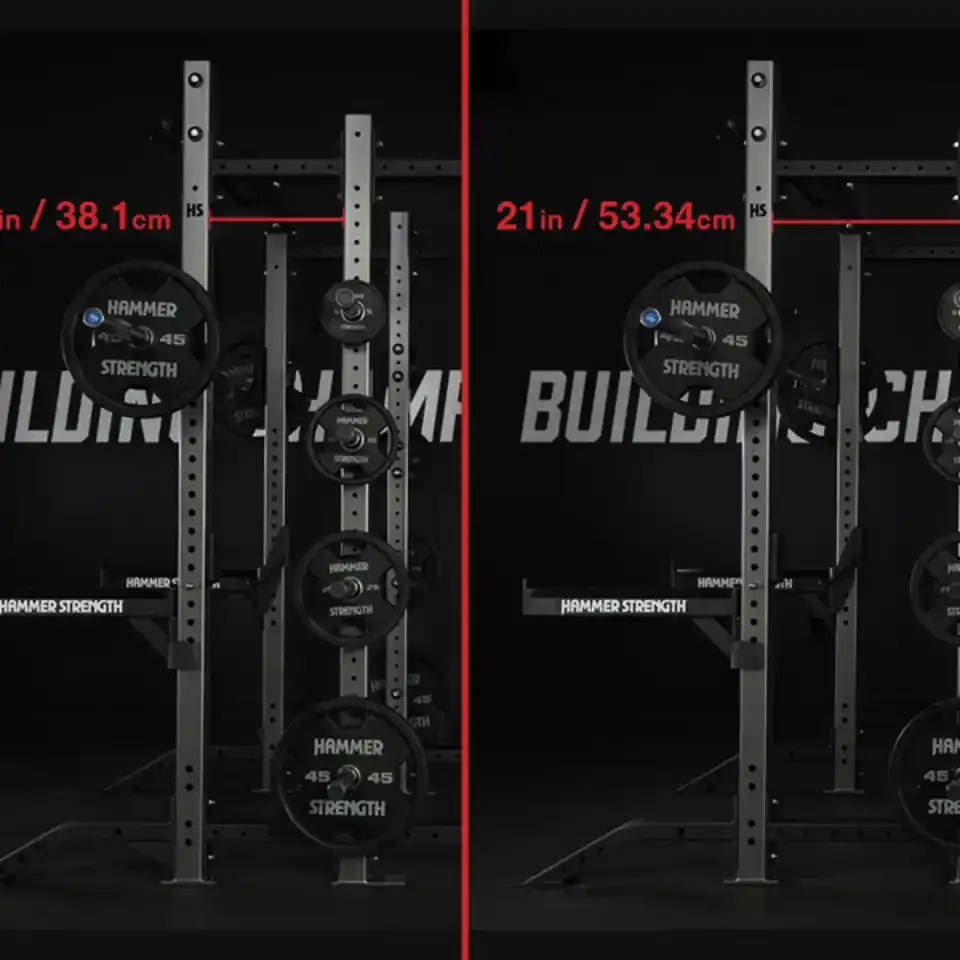

NX STORAGE DEPTH

15” STORAGE DEPTH

15” (38.1 cm) storage depth is best for space constrained weight rooms that can’t bolt down HD Athletic Pro Perimeter.

21” STORAGE DEPTH

21” (53.3 cm) storage depth provides more space between the Training Upright and the Storage Upright, which creates more room for bench depth and spotter access.

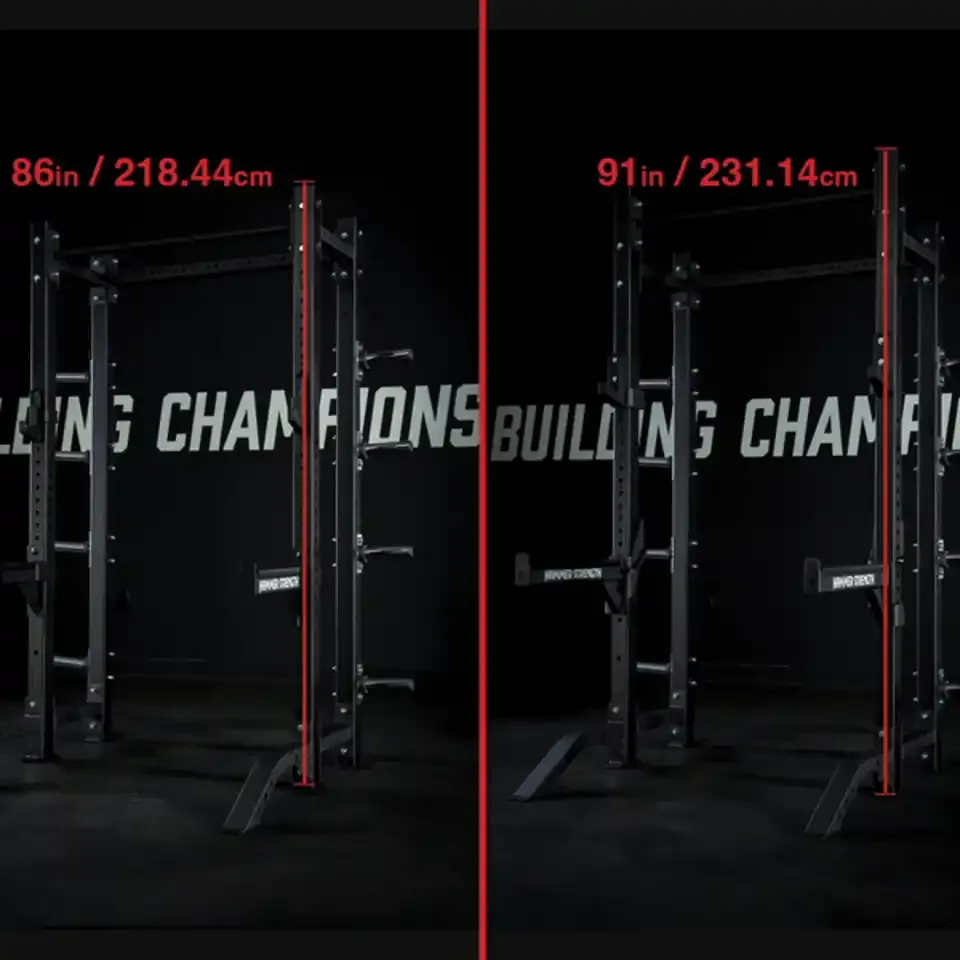

HD ATHLETIC NX HEIGHT

91" (231.14 cm) OR 86" (218.44 cm) HEIGHT

Why two different height options?

Each HD Athletic NX Rack training upright can fit in rooms with a standard 8′ (2.44 cm) ceiling. Create the perfect combination to match ceiling height limitations and user height requirements.

HD ATHLETIC NX COMBO RACK STORAGE

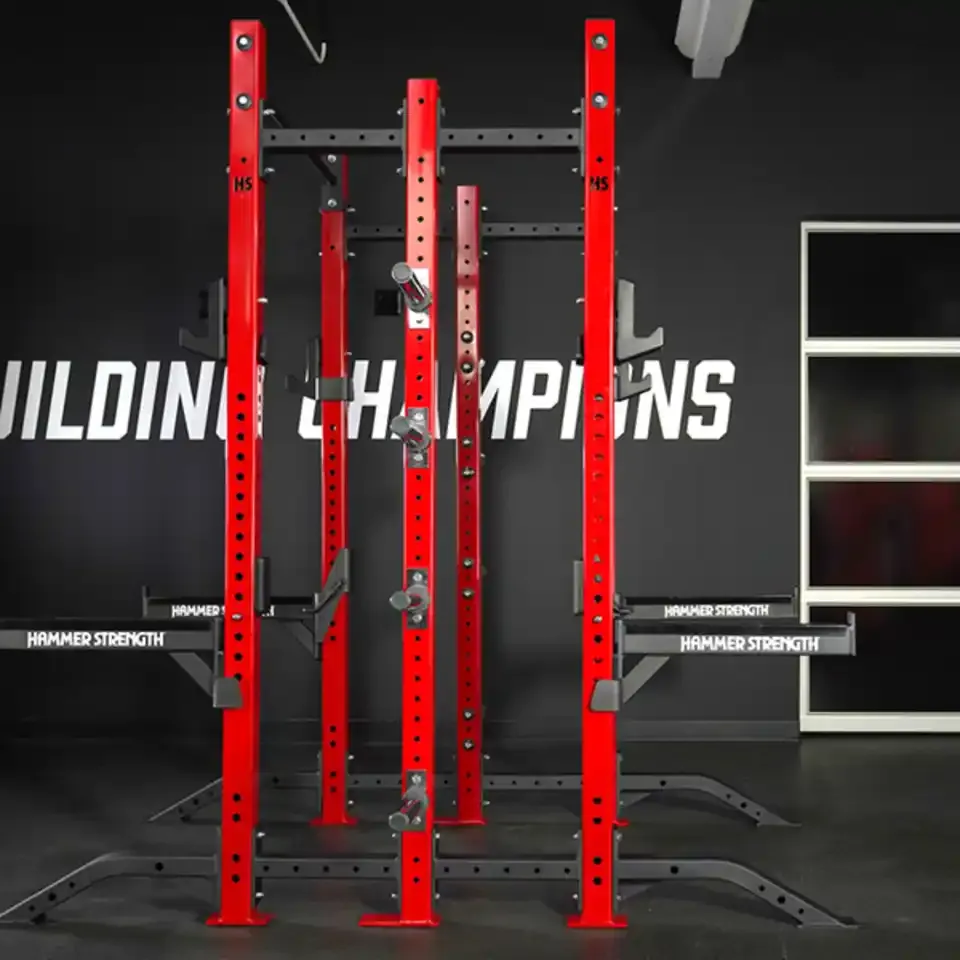

SINGLE STORAGE

When space is at a premium, choose the single storage for a compact Combo Rack. XL weight horns are recommended for this configuration to allow for enough plate storage for both training stations.

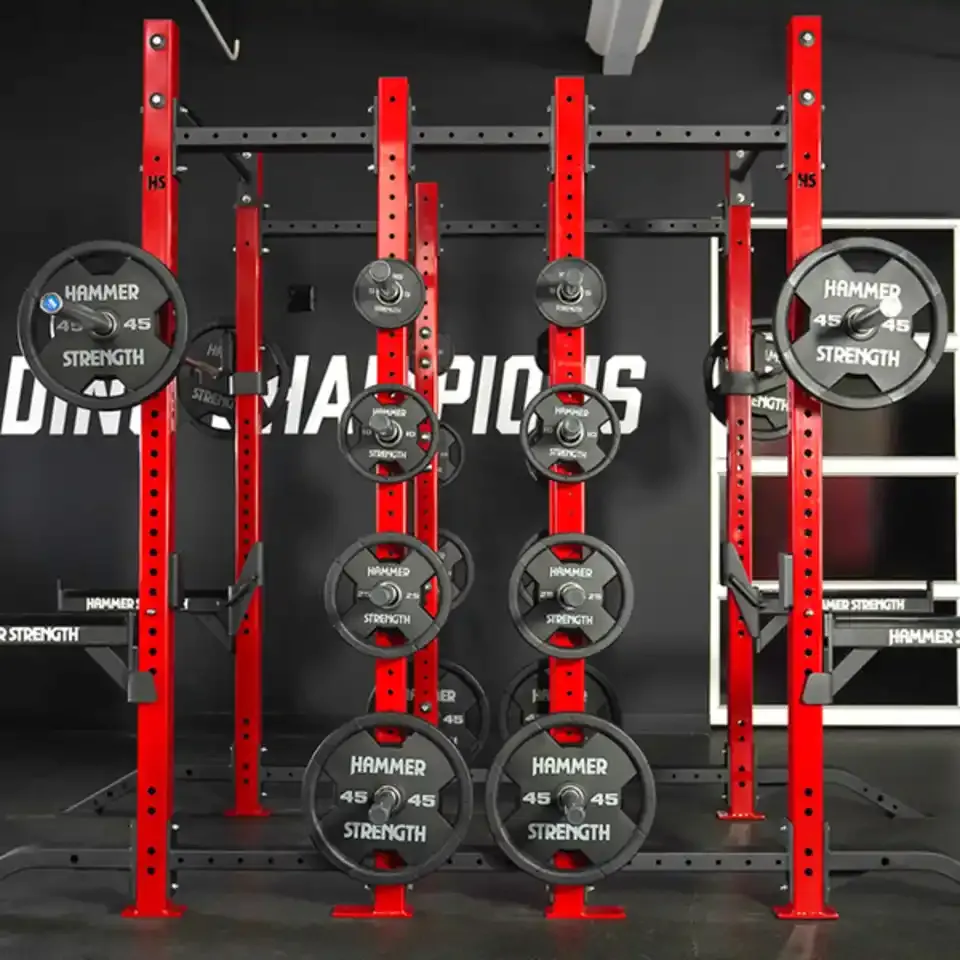

DOUBLE STORAGE

An ideal solution to maximize plate storage with Combo Racks, the Double Storage creates plenty of weight horn capacity to efficiently feed both training stations. Double Storage adds a minimum of 18” (46cm) depth to Combo Racks.

PULL UP OPTIONS

MONKEY BAR

The most traditional of all pull-up bars. The Monkey Bar has high versatility and is the lowest cost option. The bar is 1.25” in diameter and uses a high-wear, textured paint to enhance grip and extend the finish life.

2-HANDLE BAR

A Hammer Strength classic, the 2-Handle pull-up bar features 1.25” handles in mixed configurations. This pull-up option features grips on each handle and embodies one of Hammer Strengths’ true design philosophies: supreme ergonomics.

OFFSET BAR

Maximize space with the Offset Bar. With two 1.25” textured pull-up bars, this option provides both high and low pulling points with a 9” separation to compensate for lower training uprights.

STORAGE ADD-ONS

LOW BAR STORAGE

A convenient, low-profile bar storage solution. Inside the sleeve of each Low Bar Storage is a plastic guard to protect your bar when dropping it into the storage cylinder. The cylinder is angled slightly away from the Rack to ensure the bar can not contact the rack and damage paint.

HANGING BAR STORAGE

Hanging Bar Storage holds the barbell by its sleeve and is finished matte charcoal powder coat. This solution can be mounted on any Xmember.

72" STORAGE TRAYS

Add any 72” Storage Members from HD Athletic to connect your HD Athletic NX Racks.

Available options include:

– 2 Pipe for bumper plate and ball storage,

– Accessory Tray for kettle bells and soft accessories,

– Dumbbell Tray, and

– Stability ball storage

ADD-ONS

STANDARD BAR SUPPORTS

The Standard Bar Support is a welded 3/8” plate protected by an injection-molded urethane cover for bar protection. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights.

The profile of the landing and resting zone are ASTM and EN compliant.

Premium Bar Support

The Premium Bar Support is a welded ½” plate protected by an oversized, injection-molded urethane cover for bar protection. The landing area is a 2” resting zone that tapers to 1.5” for wider hand clearance. The finish is a durable high-wear charcoal powder coating with a chrome pin. The interior is wrapped with 3/8” urethane paint guards to prevent any metal-on-metal contact with the rack.

STANDARD HR BAR CATCHES

The Standard Half Rack Bar Catches are 18” (46 cm) in length and use a 3-sided urethane guard to shield the catch and the bar. The catch pins easily from the face of the rack and locks in place. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights.

ASTM rated to 405 lbs.

TECHNICAL SPECIFICATIONS

Product Name
HD Athletic NX Half Half Combo Rack
Category
Racks
Product Code
HDW-HHCR
Color
Standard, Premium, Custom
Upright Height
86in (218.44cm) or 91in (231.14cm)
Pull-up Options
Monkey Bar, Offset Bar, 2-Handle Bar, 2×3 Square
Rear XM Option
2X3 Square, Super Duty XM (compatible with custom sign), Hammer Strength Sign
Storage Type
Single Storage (15in / 38.1), Single Storage (21in / 53.34cm), Double Storage (15 in / 38.1 cm), Double Storage (21in / 53.34cm)
Bar Catches / Supports
Standard Bar Supports, Premium Bar Supports, Standard HR Bar Catches, Premium HR Bar Catches
Weight Horns
4 Pairs – Standard, 2 Pairs – Standard, 2 Pairs – Long, 4 Pairs – Long

HD ATHLETIC NX RACKS

HD ATHLETIC PRO RACKS & RIGS

HAMMER STRENGTH BENCHES AND PLATFORMS

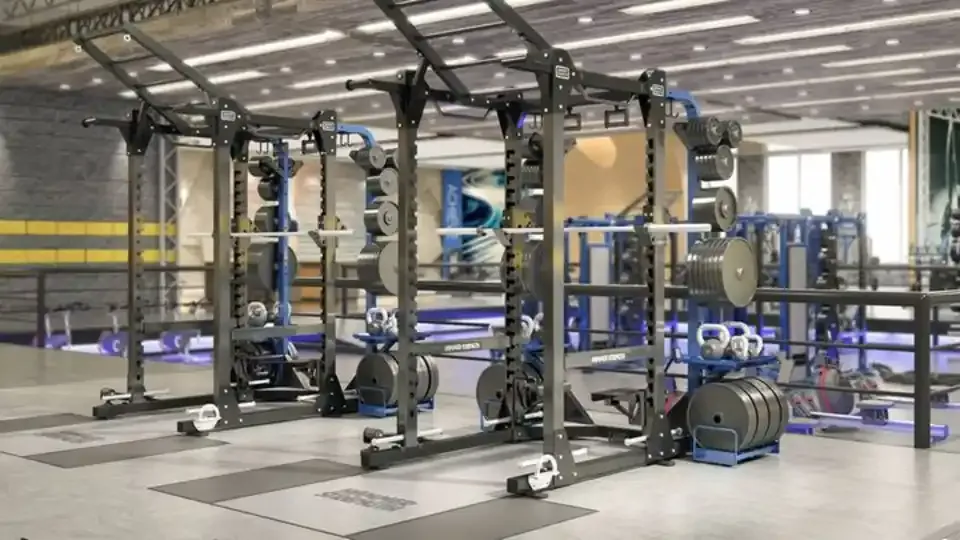

HD ELITE

The toughest Hammer Strength racks, built to a higher standard. Rugged HD Elite racks can withstand whatever elite athletes dish out. They’re constructed to exceed industry standards and have the highest load ratings of any Hammer Strength racks.

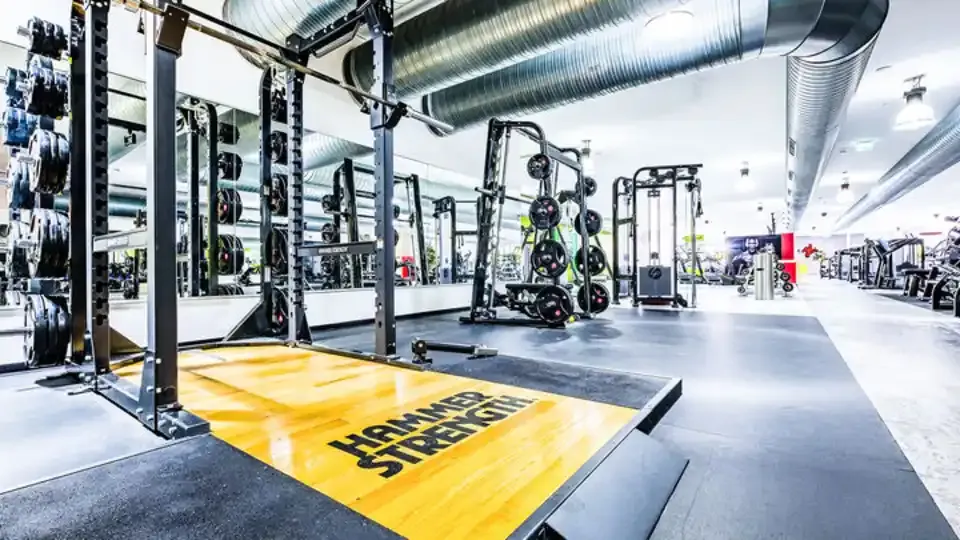

BUILD YOUR PERFORMANCE SPACE
