TECHNICAL SPECIFICATIONS
Cables | 7×19 strand construction, lubricated, nylon-coated cable meets U.S. military specifications
|
|---|---|
Cushioning | Contoured cushions utilize a molded foam for superior comfort and durability
|
Frame Description | 11-gauge steel frame ensures maximum structural integrity
|
Each frame receives an electrostatic powder coat finish to ensure maximum adhesion and durability
| |
Standard rubber feet protect base of the frame and prevent the machine from slipping
| |
Hand Grips | Grips retained with aluminum collars, preventing them from slipping during use
|
Hand grips are a durable urethane composite
| |
Instructional Placards | Easy-to-follow instructions illustrate proper use and muscles trained
|
Pulleys | 4-1/2″ (11 cm) and 6″ (15 cm) diameter fiberglass-impregnated nylon pulleys feature sealed bearings
|
Shrouds | Standard rear shrouds, Optional front shrouds
|
Weight Plates and Guide Rods | Solid-steel weight plates. Top weight plate is fitted with self-lubricating bushings |
7/16″ (11 mm) diameter weight selector pin magnetically locks in place and is connected to stack to prevent loss
| |
Product Code | CMSP |
Dimensions (L x W x H) | 46 in x 46 in x 64 in (117 cm x 117 cm x 163 cm) |
Weight | 600 lb (273 kg)
|
Weight Stack Weight in kgs | 75 |
Weight Stack Weight in lbs | 150 |
New property | Hand grips are a durable urethane composite |
MAKE IT YOUR OWN WITH

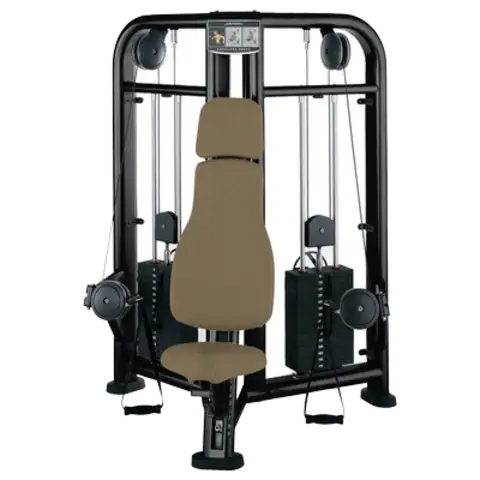

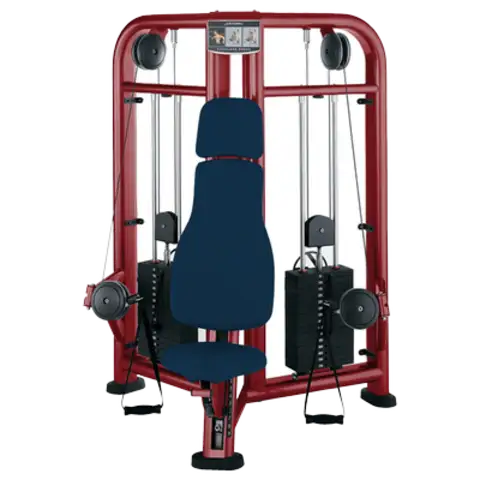

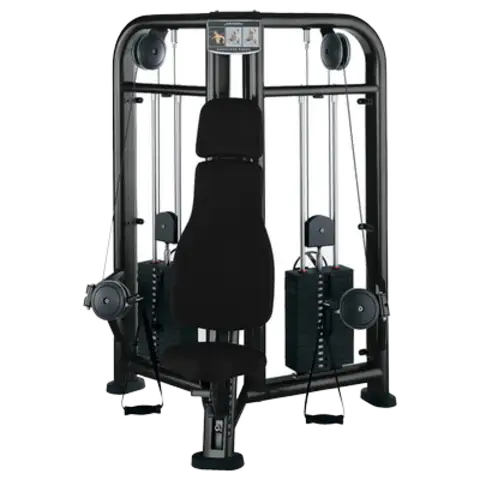

Color Options
